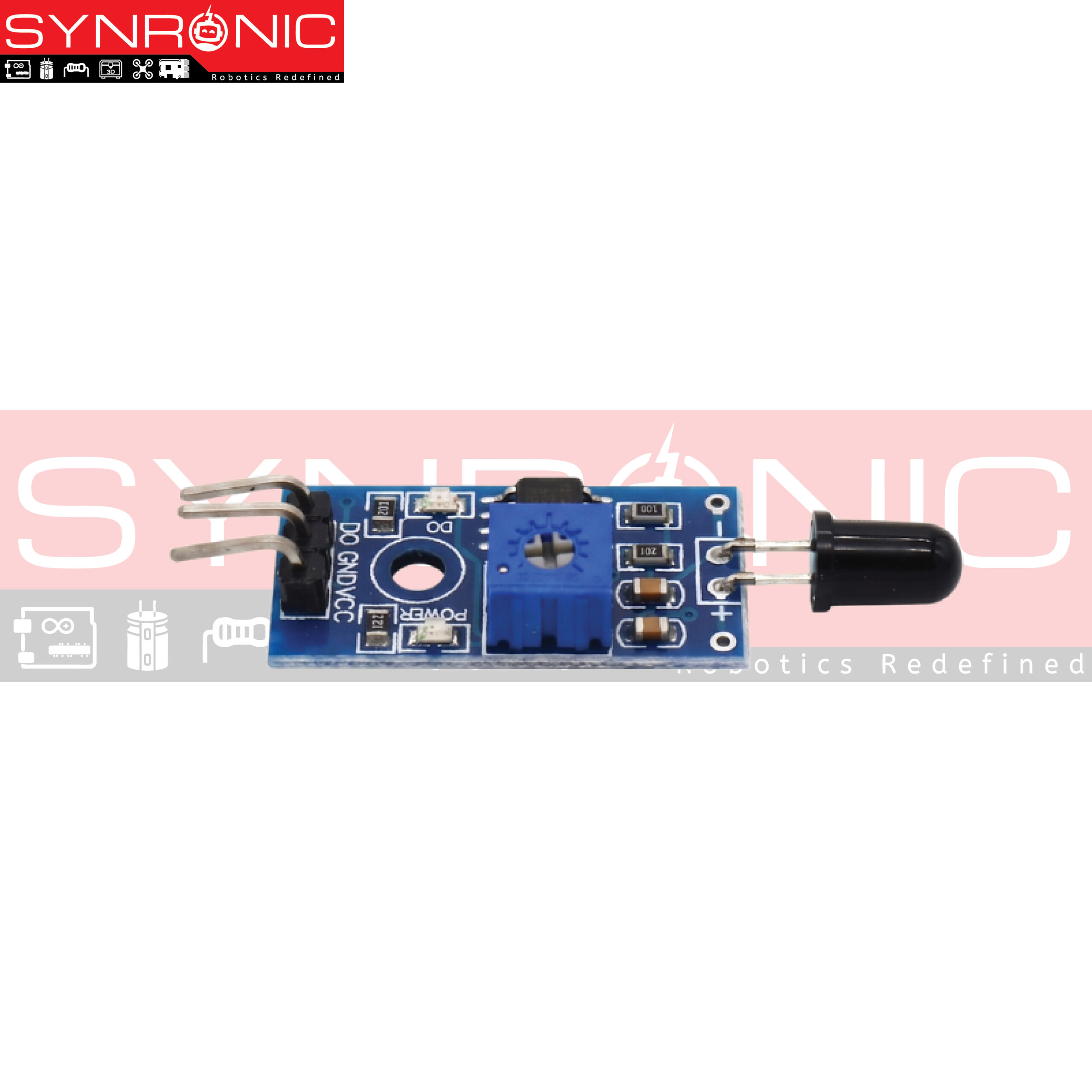

Flame Sensor Module

A flame sensor module is an electronic device used to detect the presence of flames or fire. It is commonly used in various applications such as fire detection systems, safety equipment, and industrial processes. The module typically consists of a sensor and supporting circuitry that helps in flame detection.

The flame sensor module works based on the principle of infrared (IR) detection. It uses an IR receiver to detect the infrared radiation emitted by flames. When a flame is present, it emits IR radiation that falls within a specific wavelength range. The sensor module is designed to detect this specific range of IR radiation and trigger a response.

Here’s a general overview of how a flame sensor module typically works:

1. Sensor: The module contains an IR receiver, which is sensitive to the specific wavelength of infrared radiation emitted by flames. This sensor is usually made of a material that has a high response to IR radiation.
2. Circuitry: The sensor is connected to supporting circuitry, which amplifies the sensor output and converts it into a usable signal.
3. Detection: When a flame is present in the sensor’s field of view, it emits IR radiation. The sensor detects this radiation, and the supporting circuitry processes the signal.
4. Output: The module’s output can take different forms, depending on the specific module design. It may provide a digital output (such as a high or low signal) indicating the presence or absence of a flame. Some modules also offer analog output, which can provide information about the intensity of the detected flame.
5. Applications: Flame sensor modules are commonly used in various applications, including fire detection systems, gas appliances, industrial burners, and safety equipment. They play a crucial role in triggering appropriate actions or alarms when a flame is detected.
